Overhead Crane Specification Single Girder

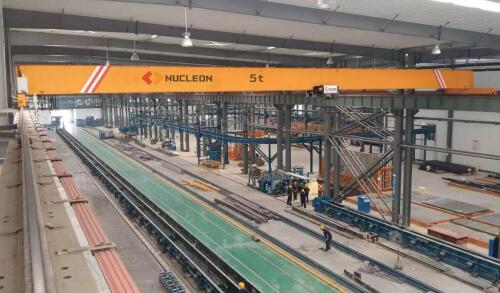

* LDA model single girder
overhead crane is characterized by more reasonable structure and higher
strength steel as a whole.
* Used together with CD1 model MD1 model electric hoist as a complete set, it
is a light duty crane with a capacity 1 ton ~ 32 tons. The span is 7.5m~ 31.5m.
Working grade is A3~A4.
* This product is widely used in plants, warehouse, material stocks to lift
goods. It is prohibited to use the equipment in the combustible, explosive or
corrosive environment.
* This product has two operational methods, ground or operational room which
has open model closed model and can be installed on the left or right side
according to the practical situation.
* And the direction of entering the gate has two forms, sideway and ends in
order to satisfy the users, choice under different conditions.
Single Girder Overhead Crane Specification
|
Span |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
|
Capacity |
t |
1~31.5t |
||||||
|
Total weight |
kg |
1781~12086 |
||||||
|
Trolley weight |
kg |
405~740 |
||||||
|
Max. Wheel load |
kn |
13.5~90.94 |
||||||
|
Travel rail |
P24~P43 |
|||||||
|
Lifting speed |
m/min |
0.8/5 |
0.8/5 |
0.8/5 |
0.8/5 |
0.8/5 |
0.8/5 |
0.8/5 |
|
Lifting height |
m |
≥ 6 |
≥ 6 |
≥ 6 |
≥ 6 |
≥ 6 |
≥ 6 |
≥ 6 |
|
Total motor power |
kw |
4.31 |
4.31 |
4.31 |
4.31 |
4.67 |
4.67 |
4.67 |
|
Crane speed |
m/min |
3-30 |
3-30 |
3-30 |
3-30 |
3-30 |
3-30 |
3-30 |
|
Trolley speed |
m/min |
2-20 |
2-20 |
2-20 |
2-20 |
2-20 |
2-20 |
2-20 |
|
Working duty |
M5/A5 |
|||||||
