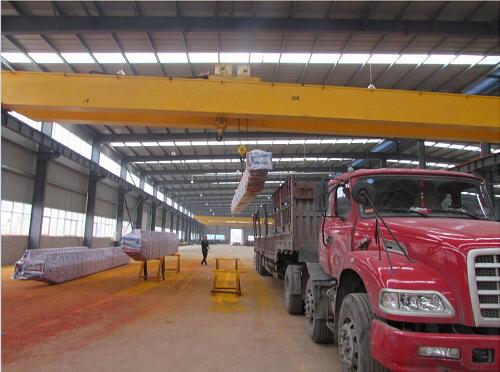

Double Girder Rail Traveling Overhead Crane
Main beam uses bias-rail box-type structure, with optimized design and light self-weight，Steel plate material Q345-B，Double Girder Rail Traveling Overhead Crane employs motor of hoisting mechanism and reducer imported. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
Double Girder Rail Traveling Overhead Crane has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter, with speed of 20m/min which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.
|
Capacity（t） |
Span (m) |
Lifting height (m) |
Working class |
Lifting speed (m/min) |
Weight |
Power Source |
||
|
Trolley(Kg) |
Crane (Kg) |
|||||||
|
3 |
10.5 |
6 |
A3-A4 |
8/0.8 |
560 |
1700 |
50HZ 380V |
|
|
16.5 |
9 |
2280 |
||||||
|
25.5 |
12 |
3299 |
||||||
|
5 |
10.5 |
6 |
A3-A4 |
8/0.8 |
770 |
1811 |
50HZ 380V |
|
|
16.5 |
9 |
2451 |
||||||
|
25.5 |
12 |
3773 |
||||||
|
10 |
10.5 |
6 |
A3-A4 |
8/0.8 |
1070 |
1861 |
50HZ 380V |
|
|
16.5 |
9 |
2687 |
||||||
|
25.5 |
12 |
4121 |
||||||
|
16 |
10.5 |
6 |
A3-A4 |
8/0.8 |
1460 |
2218 |
50HZ 380V |
|
|
16.5 |
9 |
3245 |
||||||
|
25.5 |
12 |
4633 |
||||||
|
20 |
10.5 |
6 |
A3-A4 |
8/0.8 |
1770 |
2696 |
50HZ 380V |
|
|
16.5 |
9 |
4091 |
||||||
|
25.5 |
12 |
6466 |
||||||
