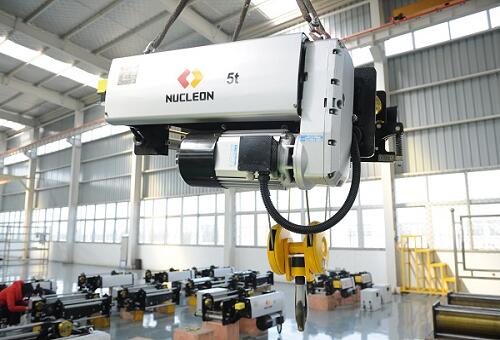

ND Electric Steel Wire Rope Hoist

  • Loading Capacity: 1 ton to 20 ton
  • Max. Lifting Height: 12m
  • Standard: FEM Standard
  • Control model: Pendant pushbutton control or remote control
  • Product description: Europe standard Hoist, ND Electric Steel Wire Rope Hoist according to Europe FEM standards, adopt the European standard FEM design development, concept advanced
  • INQUIRY
Europe standard Hoist, ND Electric Steel Wire Rope Hoist according to Europe FEM standards, adopt the European standard FEM design development, concept advanced,attractive appearance, driving unitis Germany imported. the whole machine with compact and reasonable structure, simple operation and convenient, safe and efficient operation, meet the requirements of modern low noise, energy saving and environmental protection .

The series electric hoist application 13 items patent technology, run frequency adjustable speed design, impact small, can achieved precise positioning; equipped with similar aircraft "black box" the intelligent security run monitoring records instrument, can continuously record crane work state information and prevent crane illegal operation; the whole machine used non-maintenance design, easy loss pieces less, maintenance convenient, General technology reached domestic and abroad similar products of advanced level.

ND type electric hoist according to installation can be divided into low construction height monorail trolley (ND-type, apply to single girder of electric single girder cranes), double girder crane(NDS type, suitable for double-beam crane) and stationary type . Single girder trolley electric hoist, standard weight is 1~12.5T, standard lifting height is 6m, 9m, 12m. Double raile trolley and fixed type , standard weight is 3.2~80t, with the auxiliary hook,the lifting capacity configuration is 10/3.2~80/20T , standard lifting height up to 18m. Running speed: 2~20m/min stepless frequency control, standard lifting speed is 5/0.8M/min and can also select the frequency, electric hoist, smooth braking, small crane swing, positioning accuracy, improved performance greatly. The electric hoist design basis working grade is M5.
